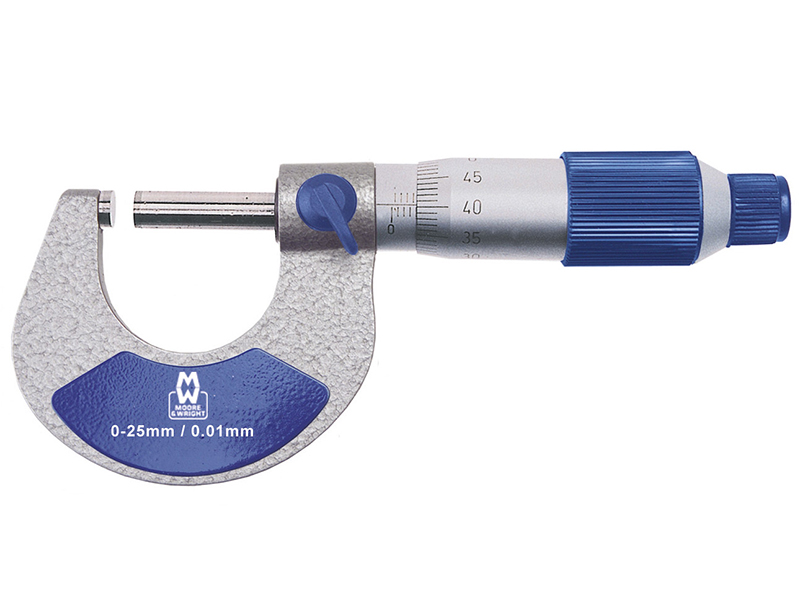

MAW20001 - MW200-01 Analogue External Micrometer 0-25mm/0.01mm

The Moore & Wright 200 Series MW200-01 Analogue External Micrometer has a hammertone finish frame with an insulated grip, a satin chrome scale and tungsten carbide measuring faces. It has a tapered design for easier access to difficult areas.

The micrometer has an adjusting key, locking lever and a constant force ratchet for ease of use. It is manufactured to DIN 863/1 standards, and supplied in plastic case.

Specification;

Range: 0-25mm.
Resolution: 0.01mm.
Accuracy: 0.004mm.
